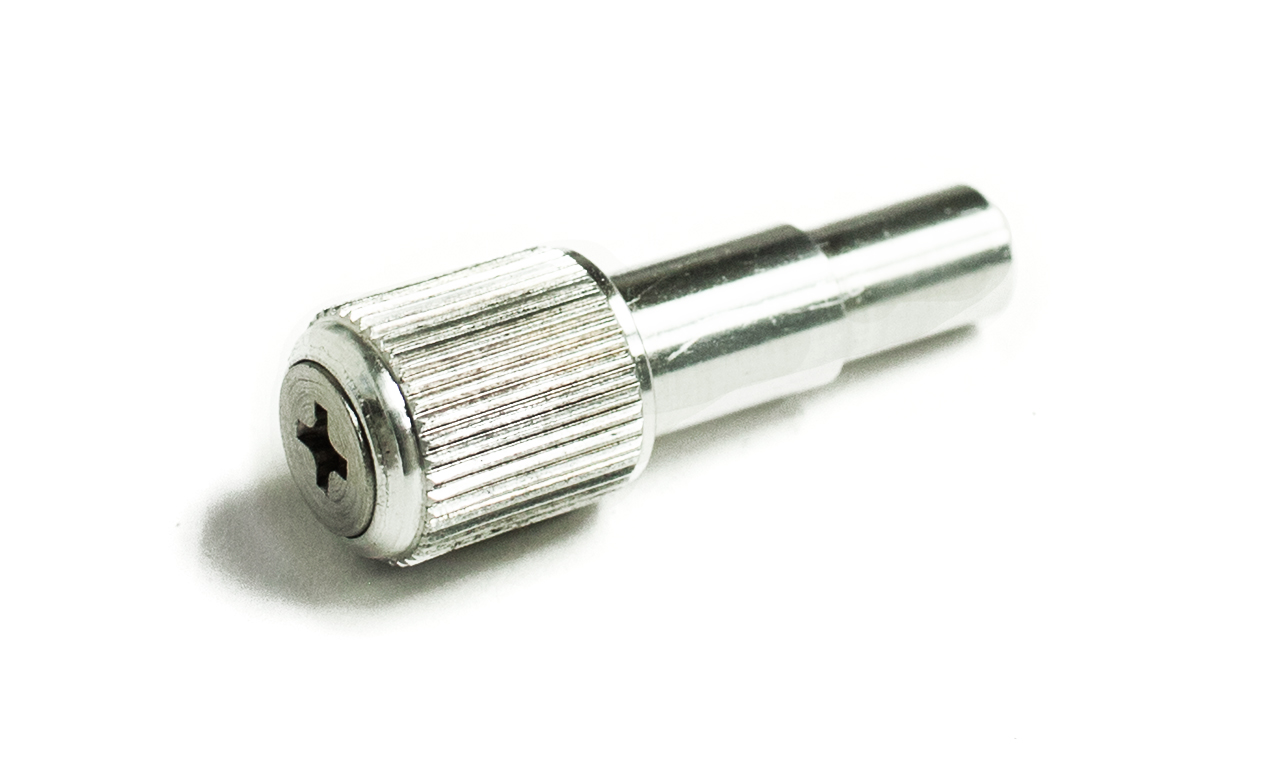

MH Series

The MH captive fasteners are ideal for applications where easy access to work panels is important. These captive fasteners are spring loaded to provide permanent retention when unfastened, preventing loss of hardware in moving parts or behind the panel.
With our extensive industry experience and knowledge, Matdan is able to provide among the fastest turnaround in the industry.  Call us to learn more about the new MH Series High Profile Captive Screws.

Applications

  • Designed for Aerospace and Defense applications
  • Manufactured with DFARS compliant Stainless Steel and Aluminum
  • Provide permanent retention
  • Available in Floating or Flare-In Styles, and a variety of thread sizes, drive recesses, and finishes
  • MHF-35Z7S-5S-ANL
    High Profile Captive Screws
    Flare-In
    M3.5x.6-4h6h
    Recess per Type 1A ANSI B18.6.3
    1.001
    302 Stainless Steel
    0.251-0.312
    304 Stainless Steel
    6061-T6 Aluminum
    Natural
    Locking Patch
  • MHF-35W7A-7S-ANL
    High Profile Captive Screws
    Flare-In
    M3.5x.6-4h6h
    Recess per NAS 4000
    1.001
    A-286 Stainless Steel
    0.313-0.375
    304 Stainless Steel
    6061-T6 Aluminum
    Natural
    Locking Patch
  • MHF-35X7S-2S-ABL
    High Profile Captive Screws
    Flare-In
    M3.5x.6-4h6h
    No Recess
    1.001
    302 Stainless Steel
    0.063-0.125
    304 Stainless Steel
    6061-T6 Aluminum
    Black
    Locking Patch
  • MHF-35Z7S-4S-ABL
    High Profile Captive Screws
    Flare-In
    M3.5x.6-4h6h
    Recess per Type 1A ANSI B18.6.3
    1.001
    302 Stainless Steel
    0.188-0.250
    304 Stainless Steel
    6061-T6 Aluminum
    Black
    Locking Patch
  • MHF-35W7A-6S-ABL
    High Profile Captive Screws
    Flare-In
    M3.5x.6-4h6h
    Recess per NAS 4000
    1.001
    A-286 Stainless Steel
    0.313-0.375
    304 Stainless Steel
    6061-T6 Aluminum
    Black
    Locking Patch
  • MHF-35Z7S-6S-ANL
    High Profile Captive Screws
    Flare-In
    M3.5x.6-4h6h
    Recess per Type 1A ANSI B18.6.3
    1.001
    302 Stainless Steel
    0.313-0.375
    304 Stainless Steel
    6061-T6 Aluminum
    Natural
    Locking Patch
  • MHF-35S7S-1S-ABL
    High Profile Captive Screws
    Flare-In
    M3.5x.6-4h6h
    Slot per ANSI B18.6.3
    1.001
    302 Stainless Steel
    0.031-0.062
    304 Stainless Steel
    6061-T6 Aluminum
    Black
    Locking Patch
  • MHF-35X7S-3S-ABL
    High Profile Captive Screws
    Flare-In
    M3.5x.6-4h6h
    No Recess
    1.001
    302 Stainless Steel
    0.125-0.187
    304 Stainless Steel
    6061-T6 Aluminum
    Black
    Locking Patch
  • MHF-35Z7S-5S-ABL
    High Profile Captive Screws
    Flare-In
    M3.5x.6-4h6h
    Recess per Type 1A ANSI B18.6.3
    1.001
    302 Stainless Steel
    0.251-0.312
    304 Stainless Steel
    6061-T6 Aluminum
    Black
    Locking Patch
  • MHF-35W7A-7S-ABL
    High Profile Captive Screws
    Flare-In
    M3.5x.6-4h6h
    Recess per NAS 4000
    1.001
    A-286 Stainless Steel
    0.313-0.375
    304 Stainless Steel
    6061-T6 Aluminum
    Black
    Locking Patch
  • MHF-35Z7S-7S-ANL
    High Profile Captive Screws
    Flare-In
    M3.5x.6-4h6h
    Recess per Type 1A ANSI B18.6.3
    1.001
    302 Stainless Steel
    0.313-0.375
    304 Stainless Steel
    6061-T6 Aluminum
    Natural
    Locking Patch
  • MHF-35S7S-2S-ABL
    High Profile Captive Screws
    Flare-In
    M3.5x.6-4h6h
    Slot per ANSI B18.6.3
    1.001
    302 Stainless Steel
    0.063-0.125
    304 Stainless Steel
    6061-T6 Aluminum
    Black
    Locking Patch
  • MHF-35X7S-4S-ABL
    High Profile Captive Screws
    Flare-In
    M3.5x.6-4h6h
    No Recess
    1.001
    302 Stainless Steel
    0.188-0.250
    304 Stainless Steel
    6061-T6 Aluminum
    Black
    Locking Patch
  • MHF-35Z7S-6S-ABL
    High Profile Captive Screws
    Flare-In
    M3.5x.6-4h6h
    Recess per Type 1A ANSI B18.6.3
    1.001
    302 Stainless Steel
    0.313-0.375
    304 Stainless Steel
    6061-T6 Aluminum
    Black
    Locking Patch
  • MHF-35V7A-1S-ANL
    High Profile Captive Screws
    Flare-In
    M3.5x.6-4h6h
    Recess per NASM 33781
    1.001
    A-286 Stainless Steel
    0.031-0.062
    304 Stainless Steel
    6061-T6 Aluminum
    Natural
    Locking Patch
  • MHF-35S7S-3S-ABL
    High Profile Captive Screws
    Flare-In
    M3.5x.6-4h6h
    Slot per ANSI B18.6.3
    1.001
    302 Stainless Steel
    0.125-0.187
    304 Stainless Steel
    6061-T6 Aluminum
    Black
    Locking Patch
